iPhone 13 Pro Max Battery Replacement: Step-by-Step Guide

If your iPhone 13 Pro Max is showing fast battery drain or reduced battery health, it’s time for a replacement. This guide will walk you through safely removing the old battery, installing a new one, and restoring your device’s functionality.

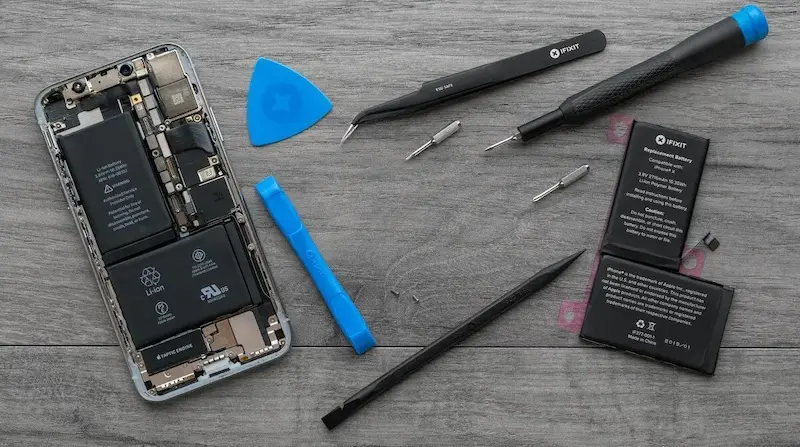

Tools Needed for Battery Replacement

Before starting, gather the following:

• Screwdrivers: Pentalobe, Tri-Wing, Phillips, Standoff
• Plastic Pry Tools & Spudger
• Suction Cup
• Tweezers
• Dust & Moisture Resistant Seal
• Adhesive Strips

Pro Tip: Using a magnetic mat helps organize screws during disassembly, making reassembly easier and preventing lost screws.

Preparing Your iPhone for Disassembly

1. Power down your iPhone.
2. Remove the two Pentalobe screws at the bottom of the phone near the charging port.
3. Warm the screen using a heat gun or hair dryer until it is hot to the touch.
4. Attach a suction cup to the bottom of the screen and lift slightly.
5. Add a few drops of isopropyl alcohol along the edges to soften the adhesive.
6. Insert a plastic guitar pick to gradually separate the screen from the chassis.

⚠️ Be extremely careful; iPhone screens are expensive to replace if cracked.

Screen Removal

• Run the plastic pick along all edges except the top, which is clipped in.
• Lift the screen like opening a book and prop it with a mug or stand to free your hands.
• Remove screws securing the shield across the logic board using a Tri-Wing screwdriver.
• Use a plastic spudger to disconnect the battery, screen flex cable, and front sensor cable.
• Carefully remove the screen.

Battery Removal

1. Add a few drops of isopropyl alcohol at the top and bottom of the battery to soften adhesive.
2. Remove any remaining adhesive seal around the edges using an X-Acto blade.
3. Pull the battery tabs slowly using tweezers, wiggling them to avoid snapping.
4. Once loose, lift out the battery carefully.

⚠️ Handle battery tabs gently, as they are prone to breaking during removal.

Installing the New Battery

1. Remove the blue and pink protective films from the adhesive strips on the new battery.
2. Place the battery in the iPhone chassis, aligning the connector with the logic board.
3. Press down firmly to ensure it sticks properly.
4. Install the dust and moisture resistant seal around the top and sides of the battery.
5. Reconnect the battery connector, screen connector, and front sensor cable.

Reinstalling the Screen

• Plug in the screen and sensor connectors carefully.
• Reinstall the shield and secure all Tri-Wing screws.
• Peel back the last layer of the moisture-resistant seal.
• Drop the screen into place, first aligning the top, then clipping the left and right edges.
• Fasten the two Pentalobe screws at the bottom of the phone.

Your iPhone 13 Pro Max is now fully reassembled and ready to power on.

Testing Your iPhone

• Power on the device to ensure all functions are working properly.
• Check that the battery is recognized and charging normally.

Note: The iPhone may display a warning that the battery has been replaced. This does not affect normal use.

FAQ

Q1: How long does battery replacement take?
A: Typically 30–60 minutes depending on experience and tools.

Q2: Can I use a third-party battery?
A: Yes, but your iPhone may show a battery warning. Functionality remains unaffected.

Q3: How do I handle broken battery tabs?
A: Apply isopropyl alcohol underneath the adhesive and gently wiggle with tweezers.

Q4: Will the screen or Face ID be damaged?
A: Carefully separating the screen and using proper tools ensures your screen and Face ID remain safe.
